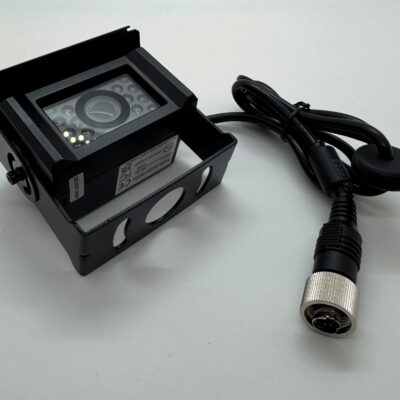

Reverse square camera with screw-on aviation plug
Technical Data
Resolution (pixels): PAL: 500(H) * 582(V), NTSC: 510 (H) * 492(V)
Anticorrosion aluminium alloy housing
Image size: 1/4 inch
Lens: Focal length 2.6 mm, F2.0
Lens angle: 110°(diagonal)
Synchronisation: Internal
Horizontal resolution: 420 TV line
Waterproof and dust resistance grade: IP68, Salt-mist test approval
14pcs IR LEDs for night vision (10-12m)
Signal to noise ratio: >48dB
Power supply: DC12V
Built-in microphone
Power consumption: <2.5 W
Operating temperature range: -30°C to + 70°C
Storage temperature range: -40°C to + 80°C
Dimension (L x W x H): 76 x 55 x 73.4 mm
Weight: 260 g
