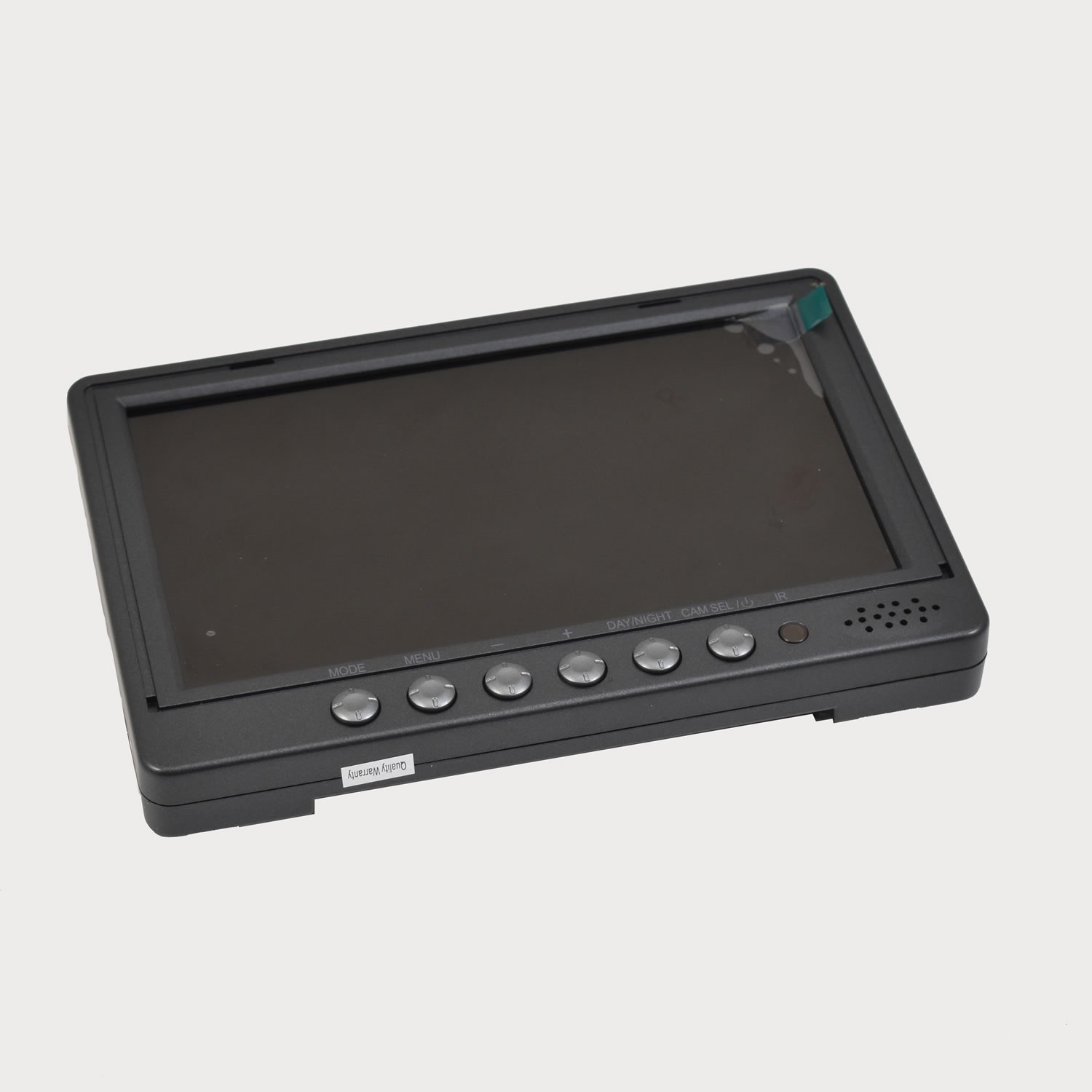

Our 7″ LCD Quad Monitor reversing system is designed for those customers who need to observe four cameras at the same time. Cameras can be displayed on the monitor as single view / two camera view or quad (four) camera view. The monitor automatically adjusts brightness according to light conditions.
Monitor
4.3″ Rear Mirror Monitor
Built-in control box
Wide view angle: (up/down): 25/45ﾠﾠ (left / right): 45/45
Brightness (cd/m2): 200
Contrast Ratio: 400:1
Resolution: 320 *3 (RGB) *234 (pixels)
Colour system: PAL/NTSC
Power requirement: 12/24 V DC
Power consumption: <7W
Dimension (L x W x D): 276 x 95 x 32mm
Weight: 490g (Including bracket)
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Camera
Resolution (pixels): PAL: 500(H) * 582(V), NTSC: 510(H) * 492(V)
Anticorrosion aluminium alloy housing
Image size: 1/4 inch
Lens: Focal length 2.6 mm, F2.0
Lens angle: 110 degrees (diagonal)
Synchronisation: Internal
Horizontal resolution: 420 TV line
Waterproof and dust resistance grade: IP68, Salt-mist test approval
14pcs IR LEDs for night vision (10-12m)
Signal to noise ratio: >48dB
Power supply: DC12V
Built-in microphone
Power consumption: <2.5 W
Operating temperature range: -30°C to +70°C
Storage temperature range: -40°C to + 80°C
Dimension (L x W x H): 76 x 55 x 73.4mm
Weight: 260g
