Main Features:

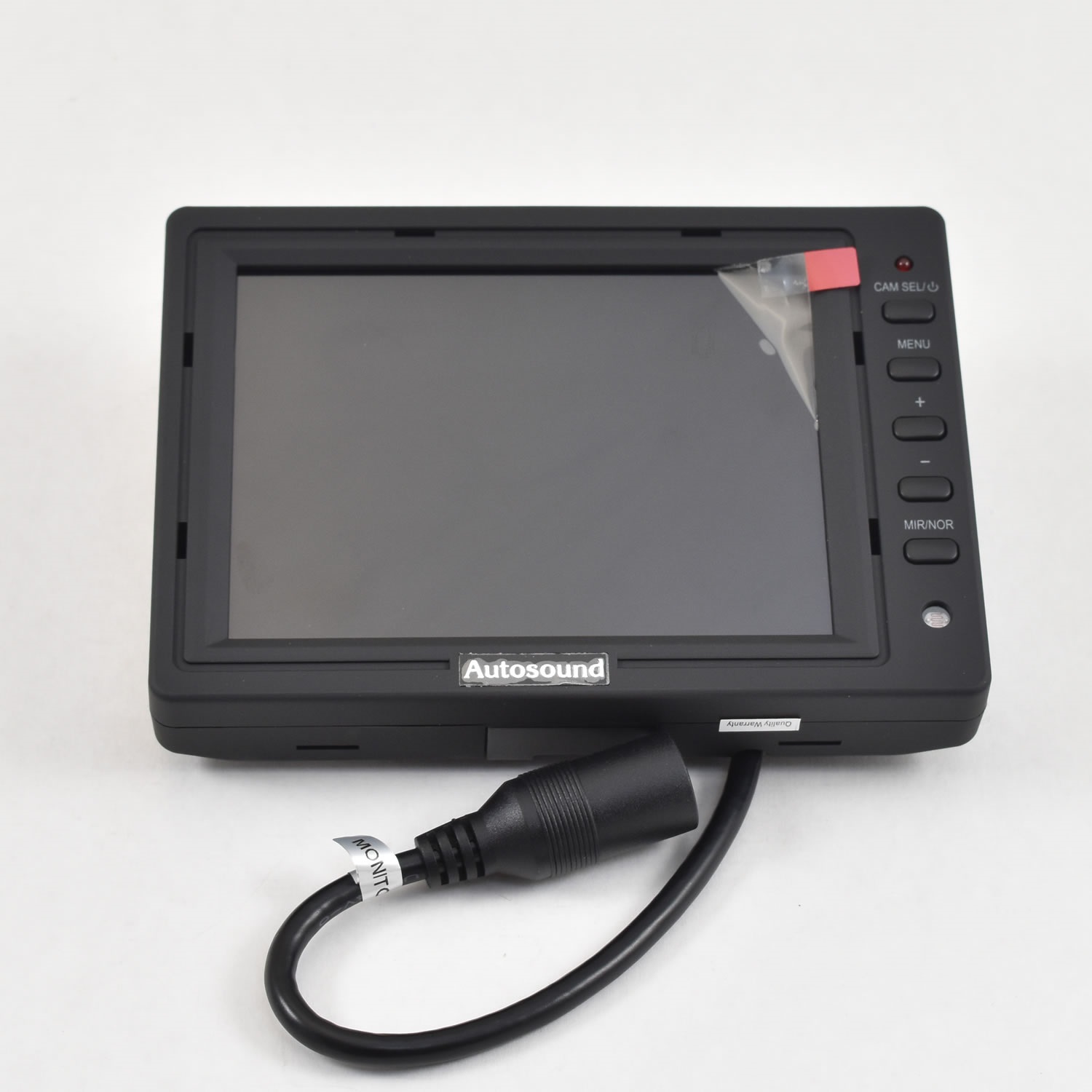

- Colour TFT LCD monitor designed for rear view system
- The monitor automatically turns on when you select reverse gear
- The power key combines with power on/off function & camera selecting function. Press it lightly to switch CAM1/CAM2, press it 2 seconds or more to power off
Technical Data:
- 5.6 inch TFT LCD Monitor: 4:3
- Wide view angle (CR>10): (Up/Down): 55/55 (Left/Right): 75/75
- High Brightness (cd/m2): 330
- Contrast Ratio: 150
- Resolution: 224640 (pixels)
- Mirror/Normal switch
- Menu is workable even if under mirror image condition
- Day/Night sensor for automatic adjustment
- Built-in speaker
- Colour system: PAL/NTSC (AUTO)
- With soon respond (ms) (at 25°C): 20
- Power requirement: 12V DC, with control box (12-24V DC)
- Power consumption: 5w

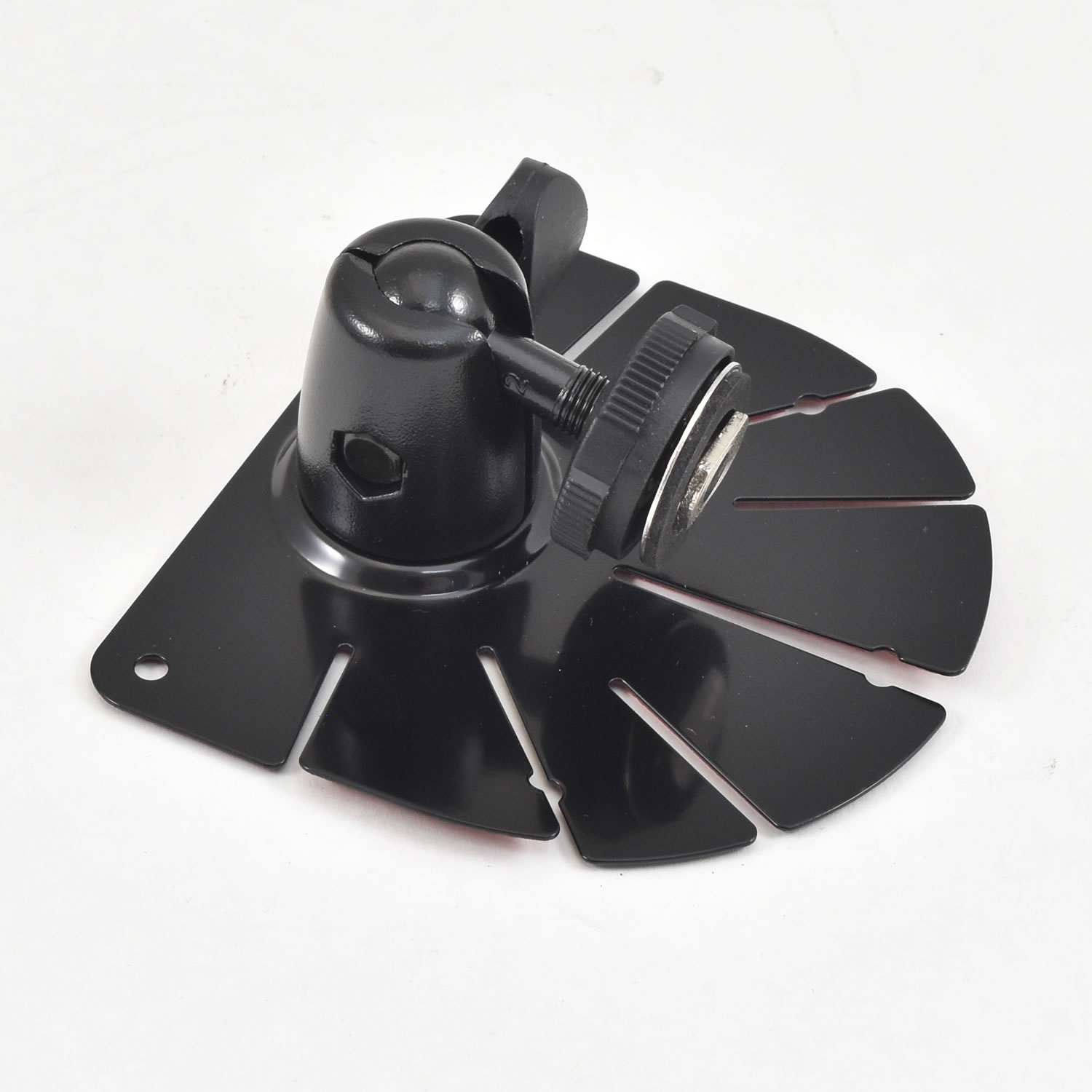

- Weight Approx: (including monitor stand) 528g
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -30°C to +85°C
- Dimensions: 165(L) x 115(W) x 29(D) mm
Certifications:
- E-Mark
- ROHS
