Description

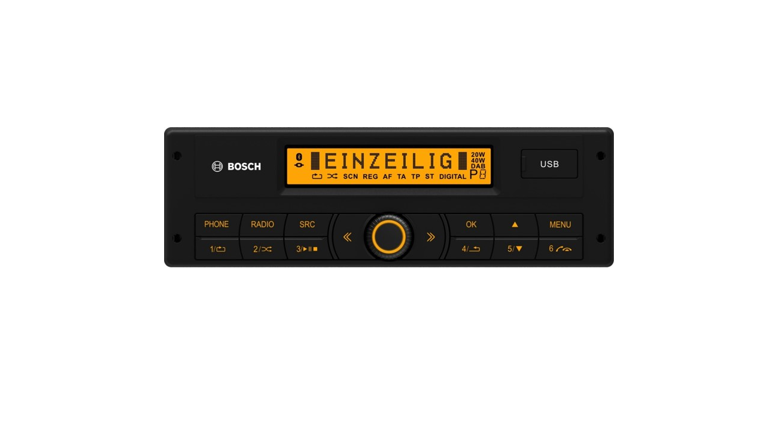

The Coach smartRadio provides several inputs for carious media. Bluetooth audio streaming and the ability to use a hands-free function safely and conveniently make the Coach smartRadio a popular multimedia companion. With its CAN connection and smartphone integration capabilities, it fits in perfectly in the vehicle environment

• Display colour: Red
• Single-line dot matrix display
• Integrated class-D amplifier with 2 x 40 watts of output power (can be optionally set to 2 x 20 watts)
• Radio: FM, AM, SW, DAB+
• USB port (type A)
• 2 x AUX-IN connections on the front panel and on the rear panel
• SD card (mini)
• Bluetooth telephony and media streaming
• Private mode function and USB charging
• 2 microphone connections
• Connection of the Coach smartPanel via tandem output
• CAN link
• Software updates via USB
• Tuner frequency ranges (depending on region):
• FM: 87.5 to 108.0 MHz
• AM: 531 to 1602 kHz
• DAB (Band III) 174.928 to 329.200 MHz
• Software:
  • 3900 to 4000 kHz
  • 5850 to 6300 kHz
  • 7095 to 7500 kHz
  • 9325 to 9950 kHz

• Operating voltage: 24 V
• Operating temperature: –20 °C to +70 °C
• Standby current consumption: < 0.5 mA
• Format: 1-DIN
• Weight: 1,070 g
• Standards: CE/RED, UN ECE R10, UN ECE R118
