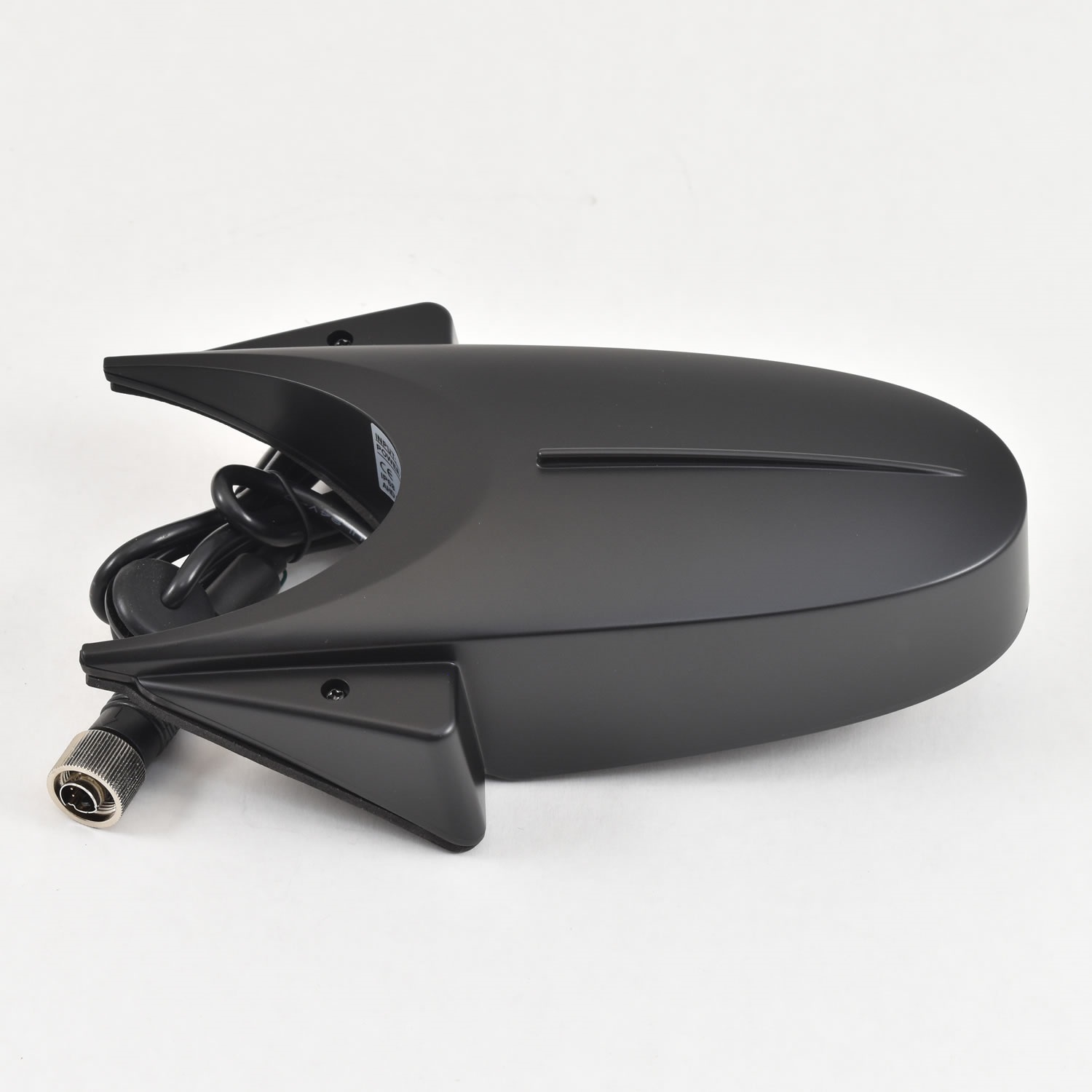

Our rear body mount overhang camera is designed for vans where when both rear doors are open you don’t have a mounting position on the back of the van for a standard camera. This camera is designed to fit at the rear of the van, overhanging the roof.
Technical Data
Image type: Colour Sony CCD
Resolution (pixels): PAL: 500 (H) * 492(V), NTSC: 510(H) * 492(V)
Image size: 1/4 inch
Lens: 2.6 mm
Lens angle: 110 degrees
9pcs LED for night vision (6-8m)
Horizontal resolution: 420 TV Lines
Power supply DC12V
Power consumption: 48dB
Operating temperature range: -30°C to +70°C
Storage temperature range: -40°C to +80°C
Dimension (L x W x H): 133.4 x 75 x 204mm
Weight: 154g
Vibration resistance: 10G
